Product Details

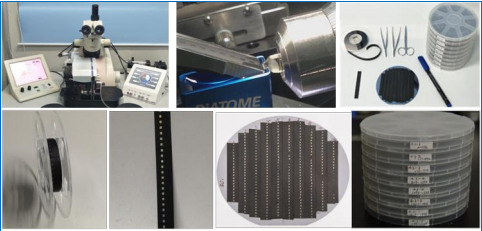

    Ultrathin sections automatically collector is an automatic ultrathin sections collect equipment, mainly composed by the base of the ultramicrotome, three-dimensional translation stage, collector, touch-control computer and other parts.
    The main application areas are those research and production field that need a great mount of continuous thin slices Collection and large-scale three-dimensional reconstruction, such as cell biology, neurobiology.
    The fully automatic collection of continuous ultrathin sections, reliefs people from the heavy, large boring continuously ultrathin sections collect work, reduces the work intensity of technical staff and technological barriers of large-scale three-dimensional reconstruction, improves the stability of the samples collected greatly.
Ultrathin sections Automatic Collector (AC-I) is the first production of the same type in China, reaches the world's advanced level.

Technical specifications

Slice collection methods                                    Unidirectional tape collection

Adjustment stroke                                             50mm*30mm*30mm

Collect width                                                    8mm

The maximum collection belt length                    >10m

Disc of Serial sections were collected                  > 1000

Slice thickness                                                  ≤100nm

Collection belt speed range                              0.1mm/s ≤V ≤5mm/s

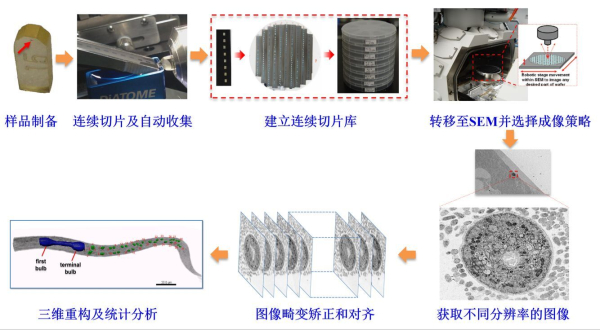

Using AutoCUTS sample slicing to analyze the entire process

Using AutoCUTS to establish sample slicing Database
